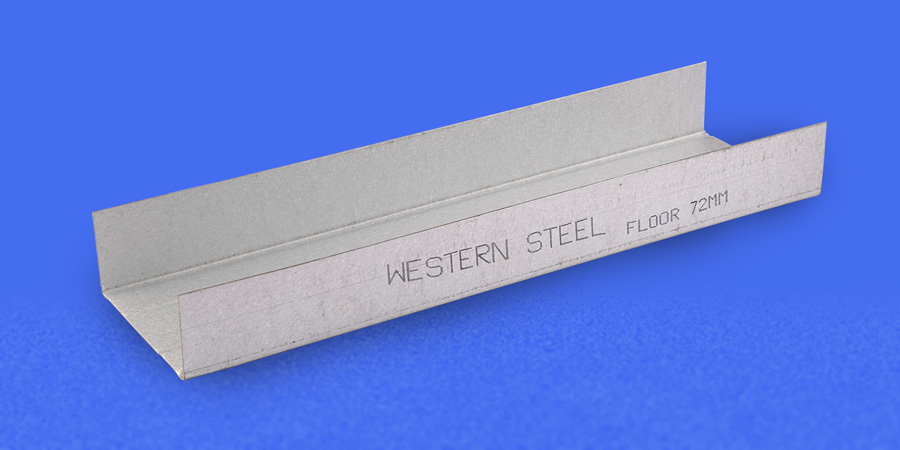

Floor and Ceiling Section : {YS-340Mpa, Finish-GalvalumeAZ150(ASTM792)}

Application : Designed for securing wall studs at floor and ceiling junctions. Fixed to the floor and ceiling to accommodate Western Steel Studs.

Dimensions(mm) : 50X32X32X0.55X3660; 66X32X32X0.55X3660; 72X32X32X0.55X3660; 78X32X32X0.55X3660; 94X32X32X0.55X3660; 102X32X32X0.55X3660; 127X32X32X0.55X3660; 152X32X32X0.55X3660



×

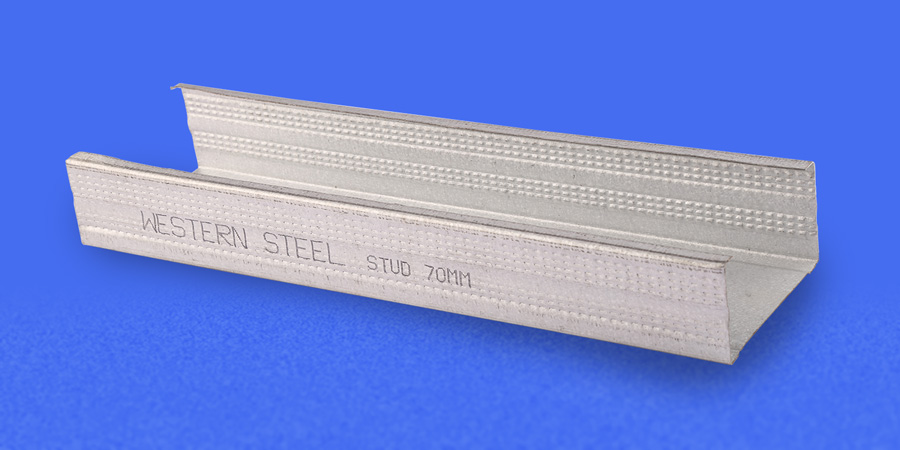

C Stud : {YS-340Mpa, Finish-GalvalumeAZ150(ASTM792)}

Application : Used as the vertical support in wall framing.

Dimensions(mm) : 48X34X36X0.55X3660; 64X34X36X0.55X3660; 70X34X36X0.55X3660; 76X34X36X0.55X3660; 92X34X36X0.55X3660; 100X34X36X0.55X3660; 125X34X36X0.55X3660; 150X34X36X0.55X3660



×

Noggin Channel

Application : Designed for horizontal support between the C-stud, helps in electrical switch fitting, fire rated partitions for preventing fires from spreading.

Dimensions(mm) : 48X40X0.55X492/695; 64X40X0.55X492/695; 70X40X0.55X492/695; 76x34x36x0.55x3660; 92X40X0.55X492/695; 100X40X0.55X492/695; 125X40X0.55X492/695; 150X40X0.55X492/695



×

DHT: {YS-340Mpa,Finish-GalvalumeAZ 150(ASTM792)}

Application : Designed for securing wall studs and ceiling junctions. Fixed to the ceiling to accommodate Western Steel Studs.

Dimensions(mm) : 50X50X50X0.70X3660; 66X50X50X0.70X3660; 72X50X50X0.70X3660; 94X50X50X0.70X3660; 102X50X50X0.70X3660; 127X50X50X0.70X3660; 152X50X50X0.70X3660



×

Fixing Channel :{YS-340Mpa,Finish-GalvalumeAZ 150(ASTM792)}

Application : Designed for cross bracing for twin frame and fixing of heavy weight fitting.

Dimensions(mm) : 99X10X10X0.90X3660

(Available In Customized Length And Thickness Upto 1mm)
