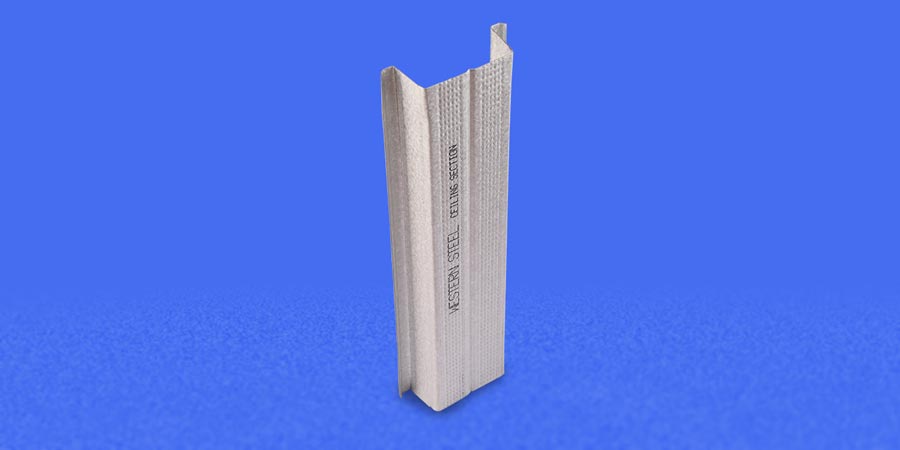

Ceiling Section : {YS-340Mpa, Finish-GalvalumeAZ 150(ASTM792)}

Application : The main supporting section to fix plasterboard

Dimensions(mm) : 80X26X51X0.55X3660



×

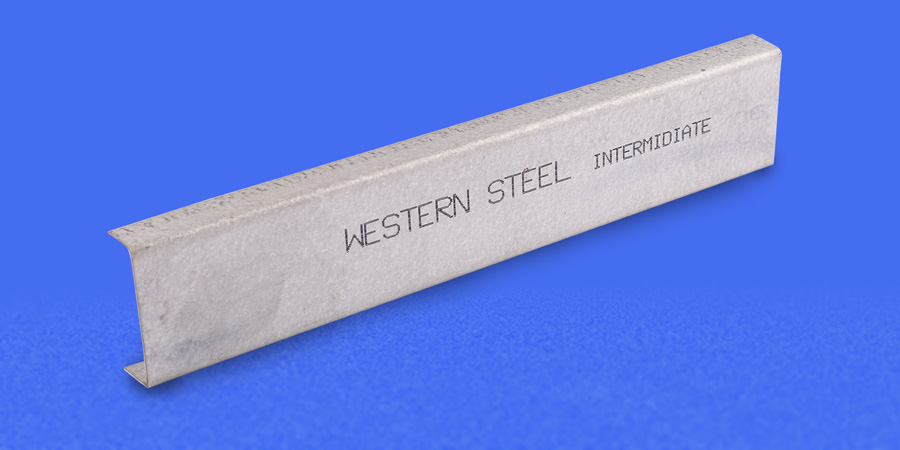

Intermediate Channel : {YS-340Mpa, Finish-GalvalumeAZ150(ASTM792)}

Application : Primary section to support the ceiling section

Dimensions(mm) : 15X45X15X0.90X3660



×

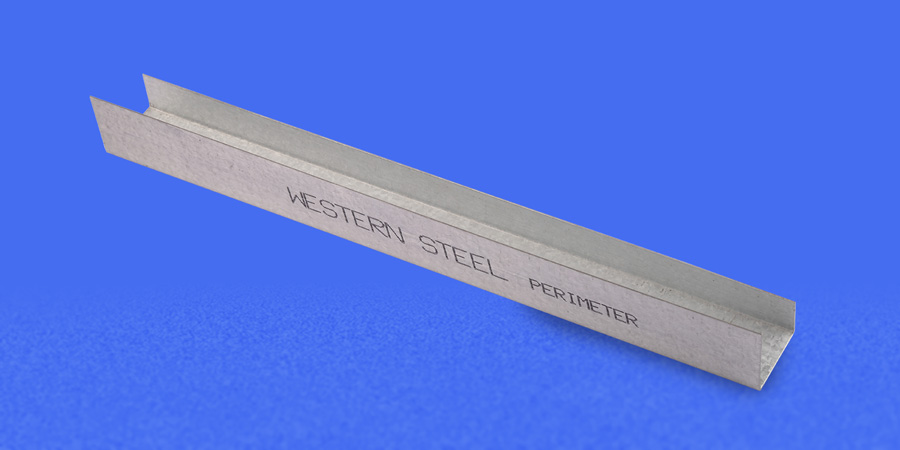

Perimeter Section : {YS-340Mpa, Finish-GalvalumeAZ 150(ASTM792)}

Cutomization : Fix around walls / partitions

Dimensions(mm) : 20X28X30X0.55X3660



×

Ceiling Hanger : {YS-340Mpa, Finish-GalvalumeAZ 150(ASTM792)}

Application : To provide suspensions from the structural soffit

Dimensions(mm) : 25X10X0.55X3660

(Available In Customized Length And Thickness Upto 1mm)
